Bilstein
Bilstein Fully Assembled Front Coilover Shock Absorbers with Rear B8 5100 Series Shocks for 2003-2009 Toyota 4Runner 2WD / 4WD / RWD
Bilstein Fully Assembled Front Coilover Shock Absorbers with Rear B8 5100 Series Shocks for 2003-2009 Toyota 4Runner 2WD / 4WD / RWD
Couldn't load pickup availability

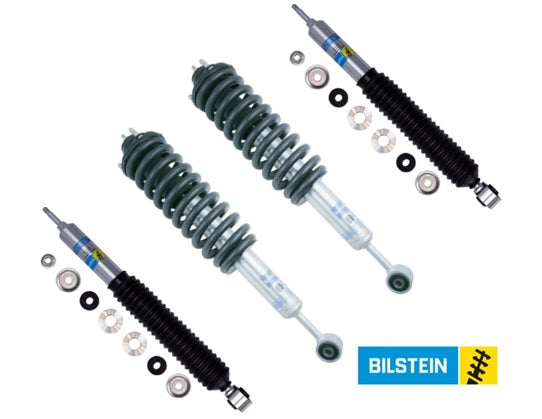

24-324359 Bilstein Fully Assembled Front Coilover Shocks with 33-313146 Rear B8 5100 Series Shocks for 2007-2009 Toyota FJ Cruiser & 2003-2009 Toyota 4Runner 2WD / 4WD / RWD - Ready to Bolt On your Vehicle
Enhance your Toyota FJ Cruiser's and 4Runner's performance with this Bilstein shock and spring assembly kit. The kit includes screw-on mounting style shocks, coil springs, top mounts, rear shock absorbers, and mounting hardware for all four sides of your vehicle. The gas-charged shock absorbers are adjustable and provide a smooth driving experience with no drilling required. The shock and spring assembly is sealed and easy to replace. Designed for universal fitment, this performance part is suitable for any vehicle in need of a suspension upgrade. The package includes part numbers: 24-324359 and 33-313146, purchasing this kit today will improve your Toyota's handling and stability both on and off-road!
24-324359 Fully Assembled Bilstein B8 5100 Series Front Shocks & 33-313146 Bilstein B8 5100 Series Rear Shocks for 2007-2009 Toyota FJ Cruiser & 2003-2009 Toyota 4Runner
Kit Includes:
Quantity 2 – Bilstein 24-324359 Fully Assembled B8 5100 Series Front Shocks, set at the ride height of your choice with new coil springs and top mounts.
Quantity 2 – Bilstein 33-313146 Rear B8 5100 Series Shocks Absorbers
Fitment:
2007 Toyota FJ Cruiser
2008 Toyota FJ Cruiser
2009 Toyota FJ Cruiser
2003 Toyota 4Runner
2004 Toyota 4Runner
2005 Toyota 4Runner
2006 Toyota 4Runner
2007 Toyota 4Runner
2008 Toyota 4Runner
2009 Toyota 4Runner
Fitment Notes:
Without X-REAS Suspension – It’s important to know that these coilovers are set on the 1st Circlip. If you choose to st them any higher that the 1st circlip, it will give you way too much lift and most likely damage your suspension. Depending on vehicle.
BILSTEIN FRONT FULLY ASSEMBLED B8 5100 SERIES SHOCK ABSORBERS – 24-324359 SPECS:
· Collapsed Length (IN) 17.03
· Extended Length (IN) 22.56
· Lower Mount: Eye 14.2mm
· Upper Mount: Stem
· Travel Length (IN) 5.53
· UPC 651860742915
· Old Bilstein Part Number: Bilstein 24-186711
· Without X-REAS Suspension
BILSTEIN REAR B8 5100 SERIES SHOCK ABSORBERS 33-313146 SPECS:
· Collapsed Length (IN)14.91
· Extended Length (IN) 23.03
· Lower Mount: Eye 19.3mm
· Upper Mount: Stem
· Travel Length (IN) 8.12
· UPC 651860863245
· Old Bilstein Part Number: Bilstein 33-187174
· The Bilstein Rear 33-313146 adds 2” more flex per side (right & left)
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Upgrade your Toyota with these Bilstein B8 5100 Series front and rear shock set up. The Bilstein 5100 Series Front 2-2.5” Front Lift Assembled Coilovers and 0-2” Rear Lift Shocks for 2007-2009 Toyota FJ Cruiser & 2003-2009 Toyota 4Runner (lift – depending on vehicle specs)
Toyota Suspension Lift Upgrade for Toyota FJ Cruiser and Toyota 4Runner, featuring Bilstein front ride height adjustable shocks fully assembled with new coil springs and new top mounts.
PLEASE NOTE:
We use our exclusive EXCEL Suspension Coil Springs for this Front Bilstein Assembly Set up at 2.5” of lift, however, you can opt to use OME Coil Springs for an additional cost: Please see details below:
OME Part Number:
OME 2883 – 1.5”
OME 2884 – 2” Stock Load
OME 2885 – 2-2.5” Medium 70-180lb
OME 2887
OME 2886 2.5-3” Heavy 230 pounds + Load
Coilovers Assembled with New Top Mounts, Isolators, and all necessary hardware. Processing times to ship this item out vary from 2-6 days. Inquire within if you need it quicker. Shocks are always set on the lowest setting as stated above, these coilovers already provide lift for your vehicle.
