Bilstein Front Suspension Kit with Rear Shock Absorbers For 15-20 Ford F-150 4WD
Bilstein Front 6112 Suspension Kit with Rear 5100 Series Shocks for 2015, 2016, 2017, 2018, 2019, 2020 Ford F-150 4WD
Fitment:
2015 Ford F-150 4WD
2016 Ford F-150 4WD
2017 Ford F-150 4WD
2018 Ford F-150 4WD
2019 Ford F-150 4WD
2020 Ford F-150 4WD
Fitment Notes:
Ford F-150 without Raptor Package
Front Lift - 0-2.1" Lift (Depending on Vehicle)
Rear Lift - 0-1" Lift (Depending on Vehicle)

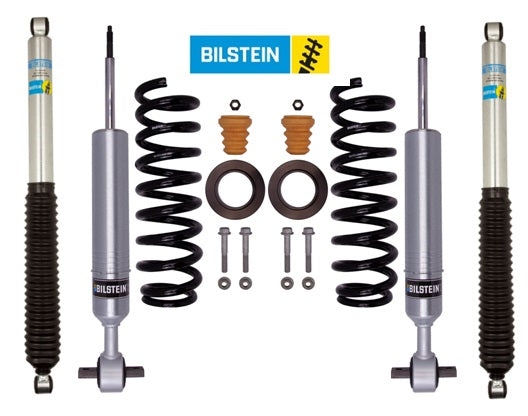

Kit Contents:
Quantity 2 - 33-253190 Bilstein Rear 5100 Series Shocks
Quantity 1 - 47-310995 Bilstein 6112 Kit
6112 (Kit Contents: (2) 60mm Shocks, (2) matched cold wound coil springs, (2) Billet Aluminum Spring Seats
Upgrade your Ford F-150 4WD's suspension system with this high-quality Bilstein front suspension kit. It includes a shock absorber, coil spring, mounting hardware, and strut, ensuring easy installation and a smooth ride. The kit features a snap ring grooved body (coilover) and a smooth body (non-coilover) shock absorber, with a shock absorber body diameter of 60mm and a shock absorber finished in zinc plating. This suspension kit is designed for performance and customization, with a limited lifetime manufacturer warranty and interchange part number of 0-2.1" lift, 2015-2020, and 0-1" lift, 2019-2020. The kit is suitable for placement on the rear, left, front, and right of your vehicle, with a custom bundle that includes 2 rear shock absorbers and 1 6112 suspension kit. Trust in the expertise of Bilstein and upgrade your Ford F-150 4WD's suspension system today.
Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
33-253190 Rear Bilstein Shock Specs:
Collapsed Length: 17.52"
Extended Length: 28.74"
Travel Length: 11.22"
Lower Mount: Eye 12mm
Upper Mount: Eye 12mm
