Bilstein

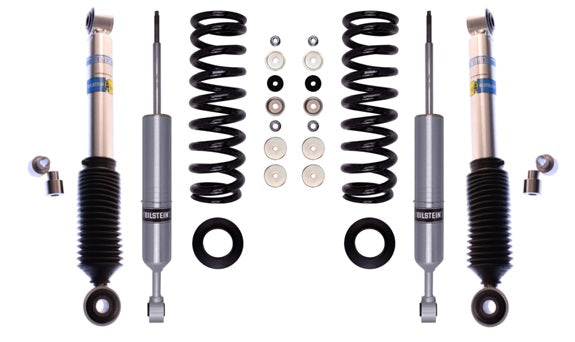

Bilstein Front B8 6112 Suspension Kit with Rear 5100 Series Shock Absorbers for 2008-2022 Toyota Sequoia, 47-310971, 33-187280

Bilstein Front B8 6112 Suspension Kit with Rear 5100 Series Shock Absorbers for 2008-2022 Toyota Sequoia, 47-310971, 33-187280

Regular price $1,066.00
Regular price $1,066.00 Sale price $1,066.00
Sale Sold out
Shipping calculated at checkout.

Bilstein Front B8 6112 Suspension  Kit with Rear 5100 Series Shock Absorbers for 2008-2022 Toyota Sequoia, 47-310971, 33-187280

Bilstein 2nd Gen Suspension Package for Toyota Sequoia

Bilstein B8 6112 leveling kit 47-310971 is designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75" of front lift (depending on your application). These kits consist of (2) 60mm shock absorbers, (2) custom matched cold wound coil springs and (2) billet aluminum spring seats.  The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock absorber kit for your light truck or SUV.

47-310971 Bilstein B8 6112 Front Suspension / Leveling Kit Specs:

·        Zinc Plated 60mm Front Shocks

·        Black Custom Matched Cold Wound Coil Springs

·        Billet Aluminum Spring Seats

·        Ride Height Adjustable

·        Allows for Larger Tires and Increased Wheel Travel

·        Monotube Design

·        Front Snap Ring Grooved Body Coil Shock Absorbers

·        Replacement Spring Seat: E4-FT2-Z043A01

·        Replacement Mounting Kit: B4-KT1-Z362A00

·        UPC: 651860868875

·        Limited Lifetime Warranty

·        Old Bilstein Part Number: 46-206084

·        2.1” – 3.3” Front Lift

33-187280 Bilstein Rear Shock Absorber Specs:

·        Collapsed Length: 13.71”

·        Extended Length: 19.29”

·        Travel: 5.58”

·        Lower Mount: Eye 19.1mm

·        Upper Mount: Eye 19.1mm

·        Monotube Design

·        Rear Zinc Plated 46mm Smooth Body (Non Coilover) Shock

·        Replacement Boot: E4-SR1-Z001A02

·        Replacement Mounting Kit: B4-KT1-Z261A01

·        UPC: 651860611259

·        Limited Lifetime Warranty

·        Old Bilstein Part Number: F4-BE5-F365-H0, BE5-F365

·        0-1” Rear Lift

Bilstein B8 5100 Series Shock Absorbers are designed as a direct fit solution for lifted trucks and SUV's. These shock absorbers feature a monotube design which provides consistent fade free performance. Bilstein B8 5100 shocks utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 Series Shock Absorbers from Bilstein are tuned for each specific application to assure optimal performance is achieved. The entire Bilstein line of shocks and suspension offer a significant improvement in ride quality, handling, and comfort both on and off-road.
