Bilstein 6112 Suspension Kit 0.75" - 2.5" Front Fully Assembled Coilovers for 2008-2022 Toyota Sequoia - 47-310971 (46-206084)

Bilstein 6112 0.75"-2.5" Front Assembled Coilover Shocks for 2008-2022 Toyota Sequoia - 47-310971 (46-206084)

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Fitment:

2008-2022 Toyota Sequoia 4WD / RWD

Fitment Notes:

·       4x4 Models can be set at .75", 1.3", 1.9",  and 2.5"

·       4x2 Pre-Runner Models can be set at 1 .5”, 2.1”, 2.7” and 3.3”

·       Coil Compressor is NOT needed for this application.

·       Designed for 4WD and 2WD Applications

Cir-clip Location for Ride Height Selection:

Please see attached ride height chart for your vehicles exact desired ride height setting. As each Tundra model – 4WD – 2WD offers different Cir-clip settings.

• Optimizes off-road and on-road capabilities with
• 60mm digressive piston for increased damping control
• Adjustable in increments
• Direct Bolt on kit directly out of the box
• Limited Lifetime Warranty
• Free Shipping in the Lower 48 United States

Upgrade your Tundra with the Bilstein 6112 front coil-over shocks for a smoother ride. Perfect for both on-road and off-road adventures, experience immediate results with this fully assembled kit. Expertly designed for maximum performance and comfort.

Kit Contents:

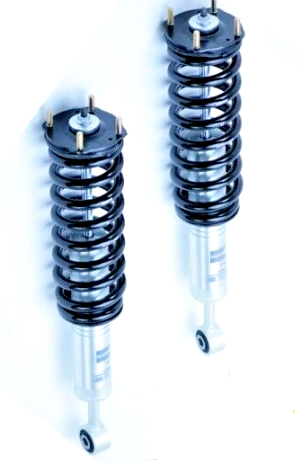

Quantity 1 - Bilstein Fully Assembled 6112 Kit with New Top Mounts (47-310971)

Quantity 2 - Bilstein 60mm Front Shock Absorbers

Quantity 2 - Bilstein Custom Matched Cold Wound Coil Spring

Quantity 2 - Billet Aluminum Spring Seats

Quantity 2 – New Top Mounts

Specs:

47-310971 Bilstein 6112 Suspension Kit – Fully Assembled

·       Front Zinc Plated 60mm Shock Absorbers

·       Black Coil Springs

·       Snap Ring Grooved Body Coilover

·       Mounting Kit: B4-KT1-Z362A00

·       Spring Seat: E4-FT2-Z043A01

·       Replacement Front Damper: 24-310987

·       UPC: 651860868875

·       Monotube Internal Design

·       Old Bilstein Part Number: 46-206084

·       B8 6112 Suspension Kit

·       Limited Lifetime Warranty

·       Free Shipping in the Lower 48 United States

·       Interchange: ICON Vehicle Dynamics 58650
