Bilstein 6112 Front Suspension Kit with Rear Bilstein 5100 Series Shocks, Bilstein Rear Coils, and Bilstein Upper Control Arms for 2010-2023 Lexus GX460

Bilstein 6112 Front Suspension Kit with Rear 5100 Series Shock Absorbers, Rear Bilstein Coils and Bilstein Upper Control Arms for 2010-2023 Lexus GX460

Part Number(s): 47-310025, 33-313146, 36-281817, 51-304690

Bilstein 6112 1-3.5" Lift System - 2010-2023 Lexus GX460

Part Number(s): 47-310025, 33-313146, 36-281817, 51-304690

Bilstein B8 6112 Front Suspension Kit, 5100 Series Rear Shocks with Rear Springs and Upper Control Arms for 2010-2023 Lexus GX460,  Bilstein 47-310025, 33-313146, 36-281817, 51-304690

Fitment:

2010-2023 Lexus GX460

2010-2024 Toyota 4Runner

2010-2014 Toyota FJ Cruiser

In Stock, Ready to Ship.  Free Shipping in the Lower 48 United States.

Bilstein B8 6112 "FULLY ASSEMBLED" Front Suspension Kit, 5100 Series Rear Shocks with Rear Springs – Front Shocks Assembly for 2010-2023 Lexus GX460,  47-310025, 33-313146, 36-281817, 51-304690

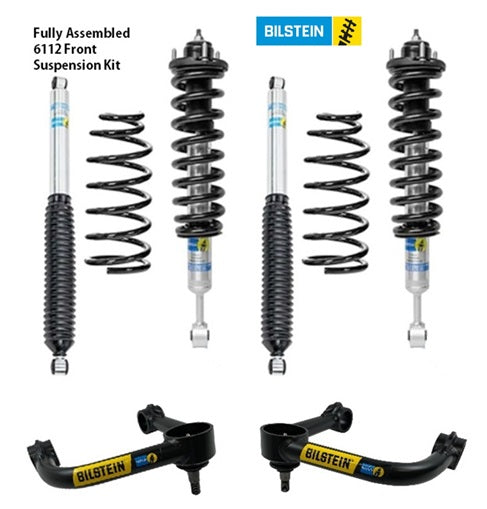

Kit Includes:

Quantity 1 - Bilstein 6112 Front Suspension Kit  - 47-310025

Quantity 2 - Bilstein Rear 5100 Series Shock Absorbers

Quantity 2 - Rear Coil Springs

Quantity 2 – Bilstein Upper Control Arms

Quantity 1 - Sticker Pack

6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3.00 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Bilstein B12 (Special) suspension kits are designed to alter the vehicles ride height for optimum performance. Utilizing various different technologies to achieve the optimum ride height for a specific requirement. Bilstein B12 (Special) suspension kits provide the perfect combination of suspension dynamics, quality and aesthetics.

The Bilstein 36-281817 Rear Coil Springs for the Toyota 4Runner are a great upgrade to provide additional ride height for improved fender clearance for your tires.  These Bilstein Coil Springs replace the factory springs and can provide up to 1" of lift over stock height on your vehicle.

B8 Control Arms are a direct fit upgrade for factory upper control arms on trucks and SUVs. The kit contains a pair of control arms which correct the caster alignment for better straight line stability with lifted suspensions, and the improved pivot angles increase wheel travel and reduce stress on the joints. These strong black powder-coated 4130 chromoly steel arms are a tubular design which allows for more spring and shock clearance and feature greasable polyurethane bushings and heavy duty ball joints for the ideal combination of ride quality and durability with minimal maintenance needed. They come with detailed instructions and all necessary hardware for easy installation and are compatible with all Bilstein shocks and coilover kits. All components are replaceable.

What's Included:

(2) 60mm B8 Shock Absorbers.

(2) Custom matched cold wound coil springs.

(2) New Top Mounts

(2) Billet aluminum lower spring seats.

(1) Upper top mount hardware pack.

(2) Bilstein 5100 Series Rear Shocks

(2) Rear Coil Springs - Please let us know if your looking for Heavy Load, Medium        Load, or Standard Load Springs.

(2) Bilstein Upper Control Arms

(1) Bilstein Sticker Pack

SPECS:

·        UPC# 651860869094

·        Free Shipping in the Lower 48 United States

·        Limited Lifetime Warranty

·        Front and Rear Suspension Kit

·        47-310025

·        Fully Assembled



Rear Bilstein Shock Specs:  33-313146

·       Collapsed Length: 14.91”

·       Extended Length: 23.03”

·       Lower Mount: Eye 19.3mm

·       Upper Mount: Stem

·       Travel: 812”

·       UPC: 651860863245

·       Old Bilstein Part Number: 33-187174

·       Up to 2” more flex per side (right and left) (Depending on Vehicle)



Rear Coil Springs 36-281817

·       Rear Coil Springs

·       UPC: 651860819310

·       1” of Lift over stock height (depending on vehicle)

·       Improved Fender Clearance for your Tires

·       Great Upgrade

·       Limited Lifetime Warranty



51-304690 Bilstein Upper Control Arms

·       Powder Coated Black

·       UPC: 651860875460

·       Limited Lifetime Warranty

·       Tubular

·       4130 Chromoly Tubing

·       Greasable Black Urethane Bushings

·       Greasable Sealed Ball Joint

·       Replacement Ball Joint Kit: 13-100155

·       Replacement Bushing Washer Kit: B4-KT1-Z459A00

·       Replacement Grease Fitting Kit: B4-KT1-Z439A00

·       Mounting Kit:B4-KT1-Z458A00

·       Mounting Kit 2: B4-KT1-Z439A00

·       Mounting Kit 3: B4-KT1-Z440A00



IMPORTANT CONTROL ARMS FITMENT NOTES:

Only compatible with direct fit lift shocks or coilover shocks. Compatiable with OEM spindles only. Not for use with lift spacers.  Requires wheels with maximum 5” backspacing.



Please Note:  This Order will ship in multiple boxes.
