5th Gen Toyota 4Runner Bilstein 6112 / 5160 Rear Shocks - 47-310025, 25-311211, 25-325096

5th Gen Toyota 4Runner Bilstein B8 6112 Front Suspension Kit with Bilstein 5160 Rear Shocks  - 47-310025, 25-311211, 25-325096

2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 5th GEN Toyota 4Runner Front and Rear Suspension Lift Kit

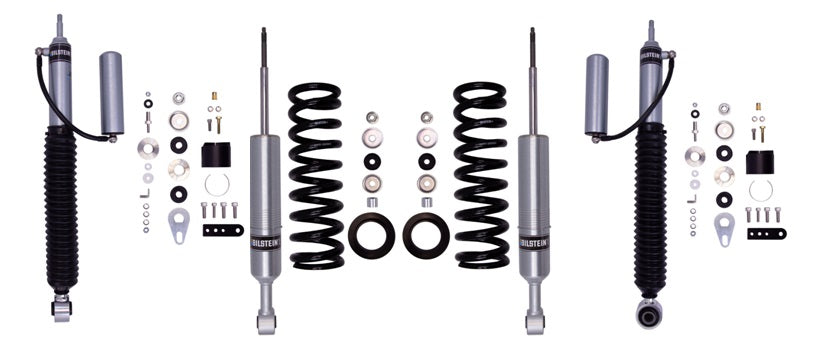

Kit Includes:

Quantity 1 - Bilstein B8 6112 Kit - 47-310025

Quantity 1 - Bilstein Rear 5160 Shock Absorber - 25-311211

Quantity 1 - Bilstein Rear 5160 Shock Absorber - 25-325096

Bilstein 6112 Front Suspension Kit are designed to provide more ground clearance, allows for larger tires, and increase wheel travel. This kit offers multiple snap-ring grooves in the body allowing for different spring seat positions, providing 0-3" of front lift (depending on your vehicle application). These kits consist of (2) 60mm front shock absorbers combined with (2) customs matched cold wound Bilstein coil springs, and (2) billet aluminum spring seats.  The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities.  Go ahead, install the Bilstein 47-310025 on your 4Runner and experience the legendary Bilstein off-road / on-road experience, you'll be glad you did!

Notes: This kit comes unassembled and a spring compressor, or professional mechanic will be needed to install. You can reuse the stock top-hats and stem bushings / washers for installation. We offer this kit fully Assembled set at the ride height of your choice for an additional cost.  Just ask and we will get you taken care of.

Lift on the vehicle provides 0.7" - 3" Front Lift (Depending on vehicle application). 2WD lift heights may vary from estimated heights as the front end on 2WD is lighter in weight then the 4WD model. If you choose to go with the OME lifted rear springs, the lift estimates are based on the front shocks being set on the lowest circlip.  Raising the perch level on the front struts to gain more lift is not recommended as it may cause damage to the struts as the springs are lifting springs.  Any manufacturing warranties are voided when going above the lowest perch while using OME lifting springs.

Rear Bilstein 5160 Shock Specs:

• Rear Left 5160 Remote Reservoir Shock Specs: 25-311211
• Collapsed Length: 14.50"
• Extended Length: 23.50"
• Extended Travel: 9"
• Lower Mount: Eye 19.25mm
• Upper Mount: Stem
• UPC: 651860893860
• Rear Left Remote Res Shock Absorber
• Old Bilstein Part Numbers: 25-227611, 25-313154
• Limited 2 Year Warranty
• Fits Vehicles with 0-2" Rear Lift (Depending on Vehicle)

• Rear Right 5160 Remote Reservoir Shock Specs: 25-325096
• Collapsed Length: 14.50"
• Extended Length: 23.50"
• Extended Travel: 8.12"
• Lower Mount: Eye 19.25mm
• Upper Mount: Stem
• UPC: 651860895239
• Rear Right Remote Res Shock Absorber
• Old Bilstein Part Numbers: 25-227611, 25-313130
• Limited 2 Year Warranty
• Fits Vehicles with 0-2" Rear Lift (Depending on Vehicle)

UPGRADES AND ADD ONS!

Looking for more products for your 4Runner?  We have and stock the following parts and can add them to your order for an additional cost:

Differential Drop

Correction Kit

4Runner Bump Stop

4Runner Extended Brake Lines

Bilstein 51-304690

SPC Control Arms

Assembly with New KYB Top Mounts

Rear Coil Options:

Bilstein 36-281817

Bilstein 36-281824

Bilstein 36-281830

OME 895 - 2" Rear Lift Coil Springs, Light Load Coils

OME 889 - 2.5" - 3.0" Rear Lift Coil Springs - Medium Weight 100-300 pounds

OME 898 - 3.0" - 3.5" Rear Lift Coil Springs - No weight, 2.5" Lift - 400 pounds constant weight

OME 899 - 2.5" - 3.0" Rear Lift Coil Springs - HD Springs - 400-800 pounds constant weight

Kit Contents:

Quantity 1 Bilstein 6112 Kit 5^th Gen 4Runner Adjustable Struts & Coil Springs

Quantity 1 Bilstein 5160 5^th Gen 4Runner Rear Shock Absorbers

Front Diff Drop from Excel Suspension corrects 4WD CV Angles by lowering your front differential (not required but highly recommended).

Upper Control Arms – UCA’s – Bilstein 51-304690 or a nice set of SPC to  Replace your UCA with a brand new UCA with a Uniball Design.

Correction Kit offered from Excel Suspension – Helps correct your rear suspension geometry after lifting your 4Runner

Sway Bar Drop Kit?

Please note:  Kits come unassembled unless you choose the assembly option of your choice and pay the additional charge for the labor and new top mounts.
