47-323841 Bilstein B8 6112 Front Leveling Kit for 2021-2024 Ford F-150 4WD

47-323841 Bilstein B8 6112 Front Leveling Kit for 2021-2024 Ford F-150

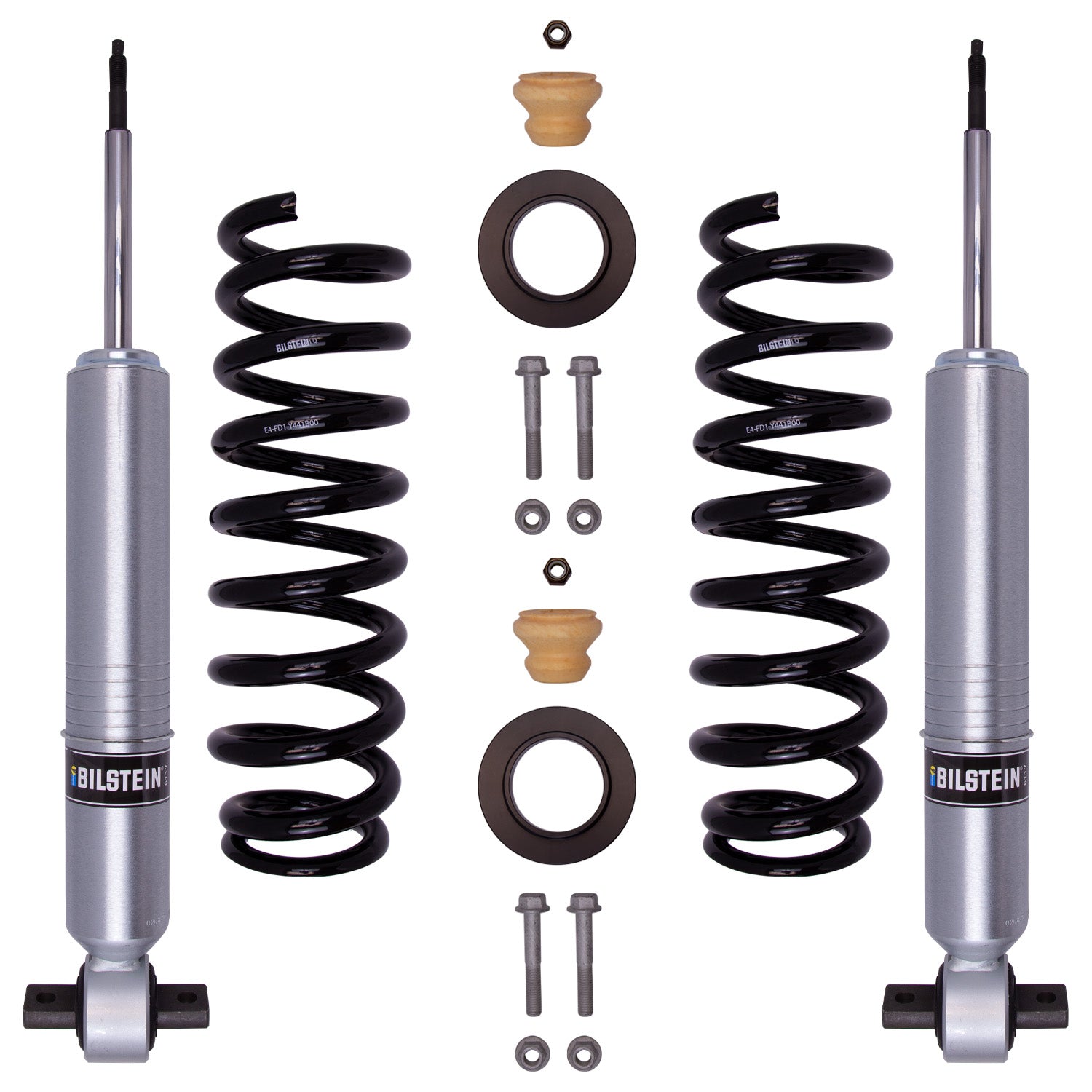

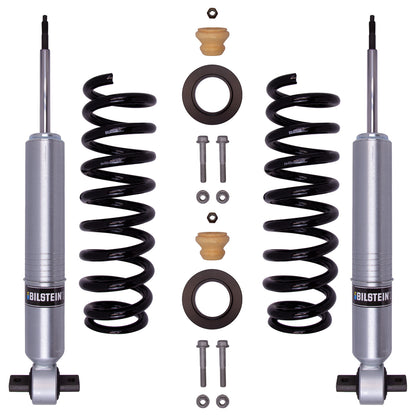

Bilstein B8 6112 suspension/leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel.  Multiple snap-ring grooves in the body allow for different spring seat settings which will provide 0-2.75” of front lift (depending on your application). These kits consist of (2) 60mm front shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats.  The large 60mm digressive piston allows for increased damping control for optimal on and off-road capabilities.  This kit is a direct fit spring kit and shock absorber kit for your Ford F-150.

We offer full assembly on this product, which means you can order it fully assembled and ready to bolt on your vehicle, right out of the box (for an additional cost).  If this is what your looking for simply send us a message so we can get your vehicle the right set up.

Fitment:

2021 Ford F-150

2022 Ford F-150

2023 Ford F-150

2024 Ford F-150

Fitment Notes:

This kit provides 0-2.5” Front Lift without continuously controlled damping.  4WD Models Only. Powerboost Hybrid: Provides 0-1.9” Front Lift, Tremor Trim:  Provides 0-1.5” Front Lift.  Will NOT fit 2WD / RWD F-150 Models.  This kit is designed to fit the Crew Cab Configuration, not the extended or single cab, or standard cab models.  Have questions?  Just ask us, we are here to help.

UPC 651860888309

·        Bilstein Front Suspension Kit for Ford F-150 – Part Number 47-323841

·        Improved On and Offroad Performance

·        Adjustable Ride Height Settings

·        Adds up to 2.5” of Front Leveling (Depending on Vehicle)

·        Reuses Factory Upper Coilover Mount, Bump Stop, and Hardware

·        4WD

·        Replacement Mounting Kit: B4-KT-Z479A00

·        Replacement Spring Seat: E4-FT2-Z043A01

·        Replacement Front Shock Absorber: Bilstein 24-323833

·        60mm, Monotube Design, Snap Ring Grooved (Coilover) Shocks

·        Limited Lifetime Warranty

·        Free Shipping in the Lower 48 United States

·        60mm Shock Body with Digressive Valving and Bilstein Coil Spring

This Bilstein Front 6112 Kit for your Ford F-150 is designed  for optimal performance and aggressive off-road adventures.  The 47-323841 offers a suspension upgrade to your already awesome F-150 allowing smooth off-road capability and will soak up bumpy impacts from rough terrain.  This 6112 Coilover Kit is ride height adjustable allowing you to maintain control of your trucks leveling.  Ride height settings are as follows:

Circlip 1 - 0” – Stock

Circlip 2 - 0.5”

Circlip 3 - 1”

Circlip 4 - 1.5”

Circlip 5 - 2”

Circlip 6 - 2.5”

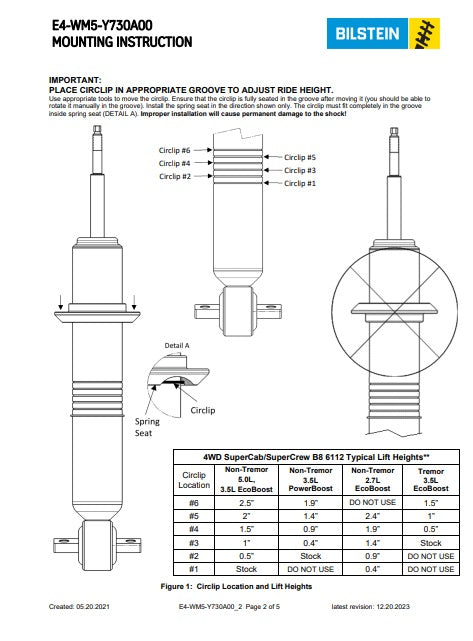

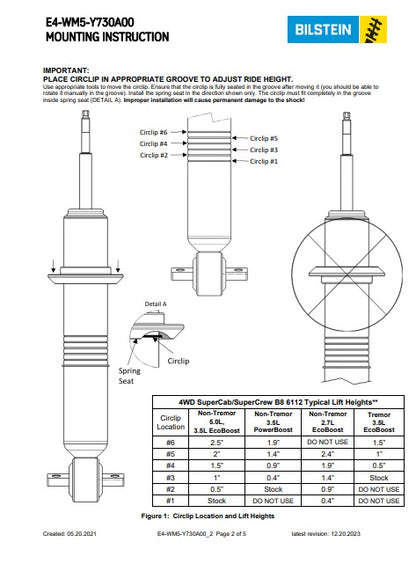

 Please see the photo of the Instruction guide for more details.
