47-310971, 33-187280, 25490 Front and Rear Suspension Package for 2008-2022 Toyota Sequoia - Bilstein Shocks and Coil Springs, SPC Upper Control Arms

Front and Rear Suspension Package for 2008-2022 Toyota Sequoia - Bilstein Shocks and Coil Springs, SPC Upper Control Arms

FREE SHIPPING IN THE LOWER 48 UNITED STATES

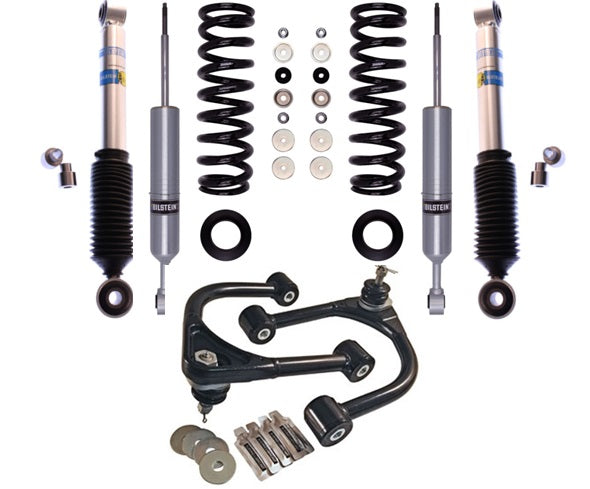

Kit Contains:

Quantity 1 - 47-310971

Quantity 1 - 33-187280

Quantity 1 - 25490

47-310971 Bilstein 6112 Kit Specs:

·        Zinc Plated 60mm Front Shocks

·        Black Custom Matched Cold Wound Coil Springs

·        Billet Aluminum Spring Seats

·        Ride Height Adjustable

·        Allows for Larger Tires and Increased Wheel Travel

·        Monotube Design

·        Front Snap Ring Grooved Body Coil Shock Absorbers

·        Replacement Spring Seat: E4-FT2-Z043A01

·        Replacement Mounting Kit: B4-KT1-Z362A00

·        UPC: 651860868875

·        Limited Lifetime Warranty

·        Old Bilstein Part Number: 46-206084

·        2.1” – 3.3” Front Lift

33-187280 Bilstein Rear Shock Absorber Specs:

·        Collapsed Length: 13.71”

·        Extended Length: 19.29”

·        Travel: 5.58”

·        Lower Mount: Eye 19.1mm

·        Upper Mount: Eye 19.1mm

·        Monotube Design

·        Rear Zinc Plated 46mm Smooth Body (Non Coilover) Shock

·        Replacement Boot: E4-SR1-Z001A02

·        Replacement Mounting Kit: B4-KT1-Z261A01

·        UPC: 651860611259

·        Limited Lifetime Warranty

·        Old Bilstein Part Number: F4-BE5-F365-H0, BE5-F365

·        0-1” Rear Lift

25490 SPC Specialty Products Front Upper Adjustable A-Arms

Improve droop travel, drivability, and tire wear as well as adjust tire position in your wheel well with SPC’s adjustable front upper control arms. Featuring an upgraded greaseable ball joint and SpecRide™ bushings, this arm is designed to correct alignment angles while maintaining factory ride quality. SPC's integrated tubular and cast steel designs provide the strength and durability needed for the most demanding environments. These remove and replace arms are sold in pairs.

Specifications:

• Adjustment range:

  • Camber ±2.0°

  • Caster -1.0° to +3.0°

• Installation time: .8 hr/side

      Bilstein B8 6112 leveling kit 47-310971 is designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75" of front lift (depending on your application). These kits consist of (2) 60mm shock absorbers, (2) custom matched cold wound coil springs and (2) billet aluminum spring seats.  The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock absorber kit for your light truck or SUV.
