3RD Gen Tacoma 2016-2023 Bilstein Fully Assembled 6112 Front Kit - 47-309975

3RD Gen Toyota Tacoma 2016-UP Bilstein Fully Assembled 6112 Front Kit

Upgrade your 3rd Generation Tacoma with the Bilstein 6112 front coilovers shocks set at the ride height of your choice will call for a smoother ride for your Tacoma. Perfect for both on-road and off-road adventures, experience immediate results with this fully assembled kit. Expertly designed for maximum performance and comfort.

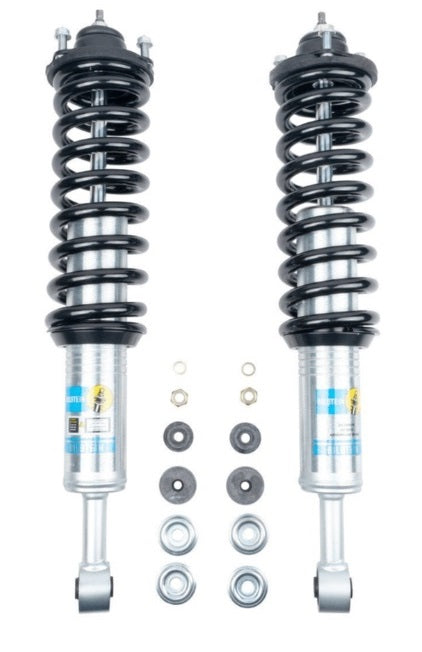

Kit Contents:

Quantity 1 - Bilstein Fully Assembled 6112 Kit with New Top Mounts - Set at the ride height of your choice.  Please see chart.

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Fitment:

2005-2023 Toyota Tacoma

Fitment Notes:

·       4x4 Models can be set at .6", 1.08", 1.59", 2.15" and 2.46"

·       4x2 Prerunner Models can be set at  .95, 1.43, 1.94 and 2.5 (5th clip not recommended)

·       Coil Compressor is NOT needed for this application.

·       Designed for 4WD only

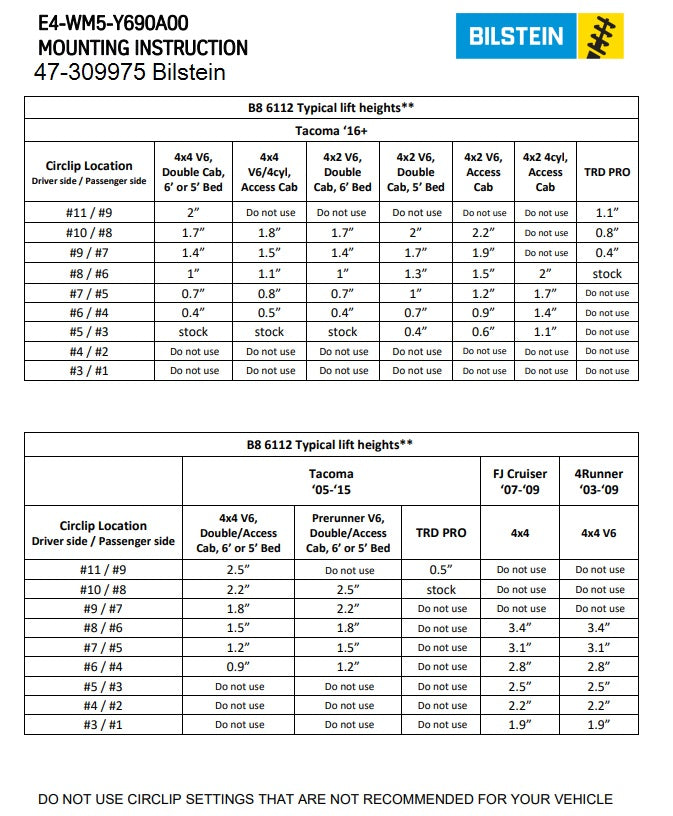

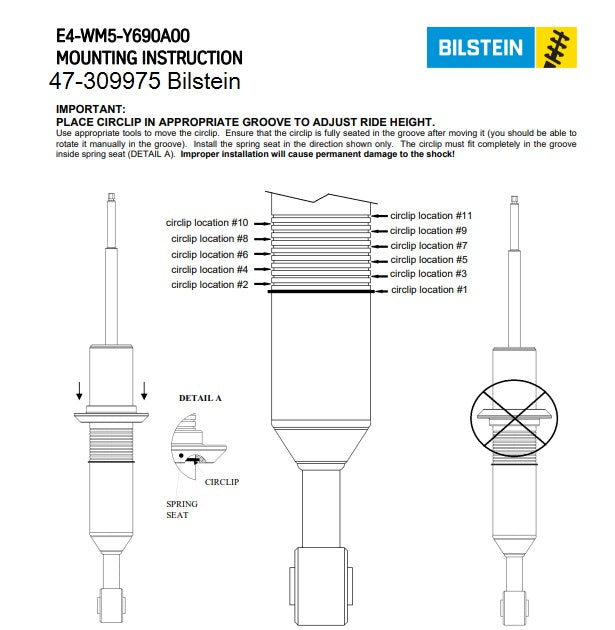

Circlip Location – Please see attached ride height chart

Circlip 5 - 2.46"

Circlip 4 - 2.15"

Circlip 3 - 1.59"

Circlip 2 - 1.08"

Circlip 1 - 0.6"

• Optimizes off-road and on-road capabilities
• 60mm digressive piston for increased damping control
• Adjustable in increments
• Direct Bolt on kit directly out of the box
• Limited Lifetime Warranty
• Old Bilstein #:  46-227287, 46-241627, 47-234413, 47-260153
• Free Shipping in the Lower 48 United States

 WARNING
