Bilstein

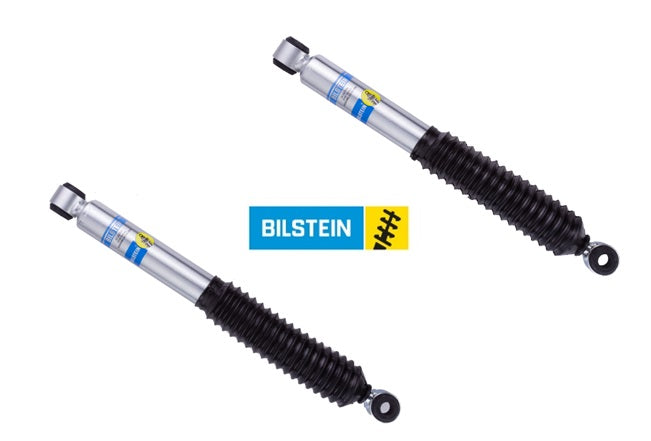

33-247717, 33-247724 B8 Bilstein 5100 Series Rear Shock Absorbers for 1996-2004 Toyota Tacoma 4WD / RWD

33-247717, 33-247724 B8 Bilstein 5100 Series Rear Shock Absorbers for 1996-2004 Toyota Tacoma 4WD / RWD

Regular price $224.00
Regular price $224.00 Sale price $224.00
Sale Sold out
Shipping calculated at checkout.

33-247717 and 33-247724 Bilstein B8 5100 Series Front Shock Absorber 1996-2004 Toyota Tacoma

Bilstein Front and Rear 5100 Series Shock Absorbers for 1996-2004 Toyota Tacoma 4WD 2WD - 33-247717, 33-247724

Fitment:

1996-2004 Toyota Tacoma

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

33-247717 Rear Bilstein B8 5100 Series Shock Absorber - Rear Right Side

  • UPC: 651860764603
  • Extended Length: 22.09"
  • Compressed Length: 14.07"
  • Travel: 8.02"
  • Lower Mount: Eye 19mm
  • Upper Mount: Eye 19mm

33-247724 Rear Bilstein B8 5100 Series Shock Absorber - Rear Left Side

  • UPC 651860764580
  • Extended Length: 21.26"
  • Compressed Length: 13.62"
  • Travel: 7.64"
  • Lower Mount: Eye 19mm
  • Upper Mount: Eye 19mm
Toyota (Depending on Vehicle)

1996-2004 Toyota Tacoma Base 4WD - 2" Lift

1996-2004 Toyota Tacoma Base RWD - 2" Lift

1996-2003 Toyota Tacoma DLX 4WD - 2" Lift

1996-2003 Toyota Tacoma DLX RWD - 2" Lift

1998-2000 Toyota Tacoma Limited 4WD - 2" Lift

1998-2004 Toyota Tacoma Pre Runner RWD - 2" Lift

2001-2004 Toyota Tacoma S-Runner RWD - 2" Lift

1996-2000 Toyota Tacoma SR5 4WD - 2" Lift

1998-2000 Toyota Tacoma SR5 RWD - 2" Lift

  • Levels out your Truck
  • 2WD / 4WD / RWD
  • Limited Lifetime Warranty
  • Free Shipping in the Lower 48 United States
  • Height Setting is Adjustable from 0-2.5" Lift (Depending on Vehicle)
  • Factory Hardware for Installation
  • Front Shocks are Adjustable
  • Old Bilstein Part Numbers: 33-249940, 33-249933

Front and Rear Shocks for 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004 Toyota Tacoma

Additional Fitment Notes: (Depending on Vehicle)

We have the 1" block in stock if you need one

1996-2004 Toyota Tacoma Base 2.7L 4WD - Front Lift Height: 0-2" / Rear Lift Height: 1-1.5" - A minimum 1" Lift Block is required for this application.

1996-2004 Toyota Tacoma Base 3.4L 4WD - Front Lift Height: 0-2" / Rear Lift Height: 1-1.5" - A minimum 1" Lift Block is required for this application.

1998-2000 Toyota Tacoma Limited - Front Lift Height: 0-2" / Rear Lift Height: 1-1.5" - A minimum 1" Lift Block is required for this application.

1998-2004 Toyota Tacoma Pre Runner - Front Lift Height: 0-2" / Rear Lift Height: 1-1.5" - A minimum 1" Lift Block is required for this application.

1996-1997  Toyota Tacoma SR5 - Front Lift Height: 0-2" / Rear Lift Height: 1-1.5" - A minimum 1" Lift Block is required for this application.
