24-336970 (24-248129) Bilstein B8 5100 Series Ride Height Adjustable Shock Absorbers with Rear Bilstein 5100 Series Shocks 33-253190 for 2015-2020 Ford F-150 4WD

24-336970 (24-248129), 33-253190 Bilstein B8 5100 Series Ride Height Adjustable Front and Rear Shock Absorbers for 2015-2020 Ford F-150 4WD – 0-2.5” Front – 0-1” Lift Rear (depending on vehicle)

Bilstein 24-336970 & 33-253190 Ride Height Adjustable Shock Absorbers are a perfect fit for your F-150’s suspension. They are designed for trucks with a front OE coilover style suspension. With the multiple snap ring grooves in the body allow for different spring seat positions, providing 0-2.5” of front lift (depending on your application). This shock set up allows for you to replace worn out suspension and drive smoothly both on and offroad. The monotube shocks feature a 46mm digressive piston with a self adjusting deflective disc valve setting. Bilstein B5 5100’s will provide increased wheel travel and improved handling. Utilizing a B8 5100 Ride Height Adjustable Shock Absorber is the easiest way and fairly inexpensive way to get the most out of your F-150’s Suspension.  This shock set will help level out your vehicle, improve your ride over pot holes, bumps, off-road, etc.  and also replaces old worn out suspension.

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Fitment:

2015-2020 Ford F-150 4WD

Fitment Notes:

4WD Only; Front Lift Height: 0-2.5; Rear Lift Height: 0-1”;  (depending on application)

Bilstein 24-336970 & 33-253190 Ride Height Adjustable Shock Absorbers are a perfect fit for your F-150’s suspension. They are designed for trucks with a front OE coilover style suspension. With the multiple snap ring grooves in the body allow for different spring seat positions, providing 0-2.5” of front lift (depending on your application). This shock set up allows for you to replace worn out suspension and drive smoothly both on and offroad. The monotube shocks feature a 46mm digressive piston with a self adjusting deflective disc valve setting. Bilstein B5 5100’s will provide increased wheel travel and improved handling. Utilizing a B8 5100 Ride Height Adjustable Shock Absorber is the easiest way and fairly inexpensive way to get the most out of your F-150’s Suspension.  This shock set will help level out your vehicle, improve your ride over pot holes, bumps, off-road, etc.  and also replaces old worn out suspension.

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Fitment:

2015-2020 Ford F-150 4WD

Fitment Notes:

4WD Only; Front Lift Height: 0-2.5; Rear Lift Height: 0-1”; (depending on application)

FREE SHIPPING IN THE LOWER 48 UNITED STATES

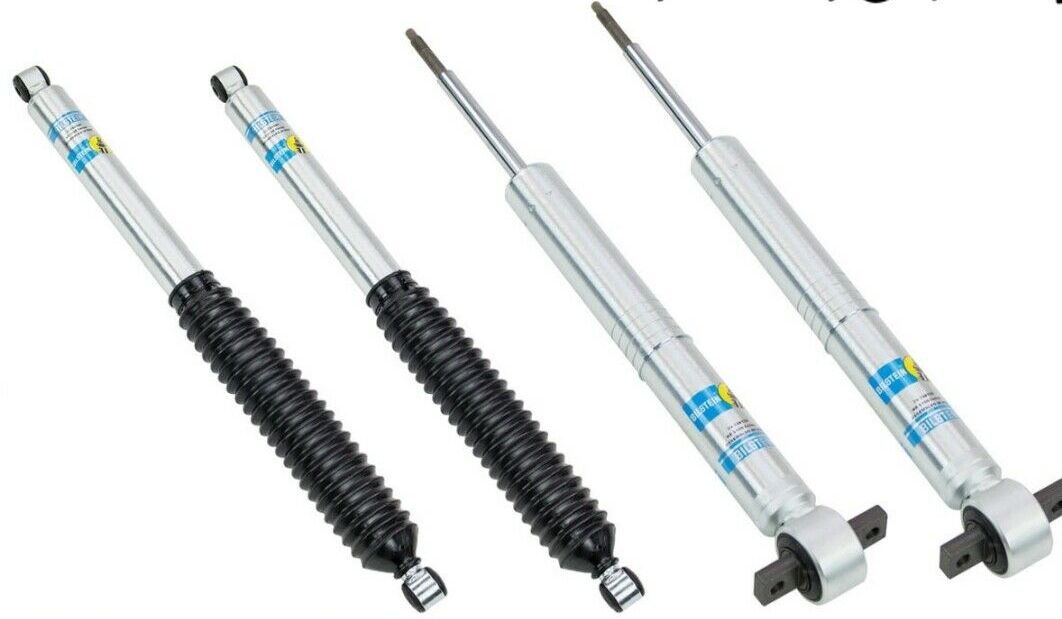

24-336970 (24-248129) Bilstein B8 5100 Series Ride Height Adjustable Shock Absorbers with Rear Bilstein 5100 Series Shocks 33-253190 for 2015-2020 Ford F-150 4WD

24-336970 Bilstein Front Shock Specs:

·        Front Ride Height Adjustable Shock

·        Collapsed Length: 16.91”

·        Extended Length: 22.41”

·        Lower Mount: Cross Bar

·        Upper Mount:  Stem

·        Travel: 5.50”

·        46mm, Zinc Plated, Monotube Design

·        Snap Ring Grooved Body Coilover

·        Replacement Mounting Kit: B-KT01-0000068

·        Replacement Spring Seat: E-FT01-0000005

·        UPC: 651860943244

·        Old Bilstein Part Number: 24-248129

·        Limited Lifetime Warranty

·        Free Shipping in the Lower 48 United States

·        Sold as a Front and Rear Set

Rear Bilstein 5100 Series Shocks 33-253190:

·        Rear  Ride Height Adjustable Shock

·        Collapsed Length: 17.52”

·        Extended Length: 28.74”

·        Travel: 11.22”

·        Lower Mount: Eye 12mm

·        Upper Mount:  Eye 12mm

·        46mm, Zinc Plated, Monotube Design

·        Smooth Body NON-Coilover

·        Replacement Boot: E4-SR1-Z001A05

·        UPC: 651860783192

·        Limited Lifetime Warranty

·        Free Shipping in the Lower 48 United States

·        Sold as a Front and Rear Set

• Levels Out Vehicle
• Replaces worn Out Suspension / F-150
• Front and Rear Shocks
• 46mm Digressive Piston
• Self Adjusting Deflective Disc Valve Setting
• 0-2.5” Front Ride Height
• 0-1” Rear Ride Height
• Improved Handling Both On and Offroad
• Will allow for Increased Wheel Travel / Larger Tires
• Limited Lifetime Warranty
• Free Shipping in the Lower 48 United States
