24-300872, 24-233354 Bilstein B8 5100 Series Front and Rear Ride Height Adjustable Shocks for 2019-2024 Ram 1500
24-300872, 24-233354 Bilstein B8 5100 Series Front and Rear Ride Height Adjustable Shocks for 2019-2024 Ram 1500
24-300872, 24-233354 Bilstein B8 5100 Series Front and Rear Ride Height Adjustable Shocks for 2019-2024 Ram 1500
Bilstein Front 2.6" & Rear 2" Shock Set for 2019-2024 Ram 1500 4WD / RWD
24-300872 & 24-233354 Bilstein Front 5100 Series Shock, 2.6" & Rear 2" 5100 Series Shock Set for 2019-2024 Ram 1500 4WD / RWD
2019, 2020, 2021, 2022, 2023, 2024 Ram 1500, RWD / 4WD - Bilstein 5100 Series Adjustable Height Shocks, Set of 4
Important Fitment Notes:
Fits non-Off Road Package Trucks with 0-2" Rear Lift; Fits factory Off Road Package Trucks with 0-1" Rear Lift
-Without Air Leveling Suspension
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Features:
- Adjustable Lift Height, Multiple Positions both front and rear
- Great solution to level out your ride
- Front 5100 Series Shocks adjust up to 2.6"
- Rear 5100 Series Shocks adjust up to 2"
- High Pressure Mono-Tube Shock Design
- Gas
- Replaces Factory Struts
- Reuse Factory Coil Springs
- Zinc Plates Finish with Clear Coat for Maximum Protection
- Complete Set of 4 Shocks - 2 Front and 2 Rear
- Limited Lifetime Warranty
Front 5100 Series Specs:
- Part Number: 24-300872
- Collapsed Length: 16.00"
- Extended Length: 22.08"
- Travel: 6.08"
- Lower Mount: Clevis
- Upper Mount: Stem
- UPC: 651860849119
Replacement Mounting / Hardware / Bushing Kit: B4-KT1-Z417A00
Provides 0-2.6" Front Lift w/out factory Off-Road Package - 0-2" Front Lift with factory Off-Road Package - Without Air Leveling Suspension
Rear 5100 Series Specs:
- Part Number: 24-233354
- Collapsed Length: 15.89"
- Extended Length: 25.43"
- Travel: 9.54"
- Lower Mount: Eye 14.1mm
- Upper Mount: Stem
- UPC: 651860843513
Fits NON Off-Road Package Trucks with 0-2" Rear Lift - Fits factory Off-Road Package Trucks with 0-1" Rear Lift - Without Air Leveling Suspension.
Replacement Shock Hardware / Mounting Kit / Bushing Pack: B4-KT1-Z223A01
This Bilstein Ram 1500 Series Shock Package has the ability to adjust the front ride height. Each adjustable 5100 Series shock has multiple snap ring grooves (Cir-clip) that will allow the spring seat to be set in different positions. Prior to any installation, be sure to make sure you have all parts available, simply choose the ride height your looking for.
Adjustable Ride Height
The ability to adjust the front ride height of these Bistein shocks is a major selling point. Each Adjustable 5100 has multiple snap-ring grooves that allow the spring seat to be set in different positions. Prior to installation simply choose the best height for your situation. The included instructions will explain the height each groove will provide. There are 7 Positions on the circlip for the Ram 1500:
Standard Ram Models: Stock Height to 2.6"
- #7 - 2.6"
- #6 - 2.2"
- #5 - 1.7"
- #4 - 1.3"
- #3 - 0.9"
- #2 - 0.5"
- #1 - STOCK
Ram 1500 - Rebel or Off-Road Package Models: Stock Height to 2" Lift
- #5 -2"
- #4 - 1.5"
- #3 -1"
- #2 - 0.5"
- #1 - STOCK
IMPORTANT FITMENT NOTES:
This Shock Package fits New Body Style ONLY. EXCLUDES DS Models (OLD Body Style)
Excludes Models with Factory Air Ride Suspension
Rebel and Other Models with Off-Road Packages will be lifted a maximum of 2 inches

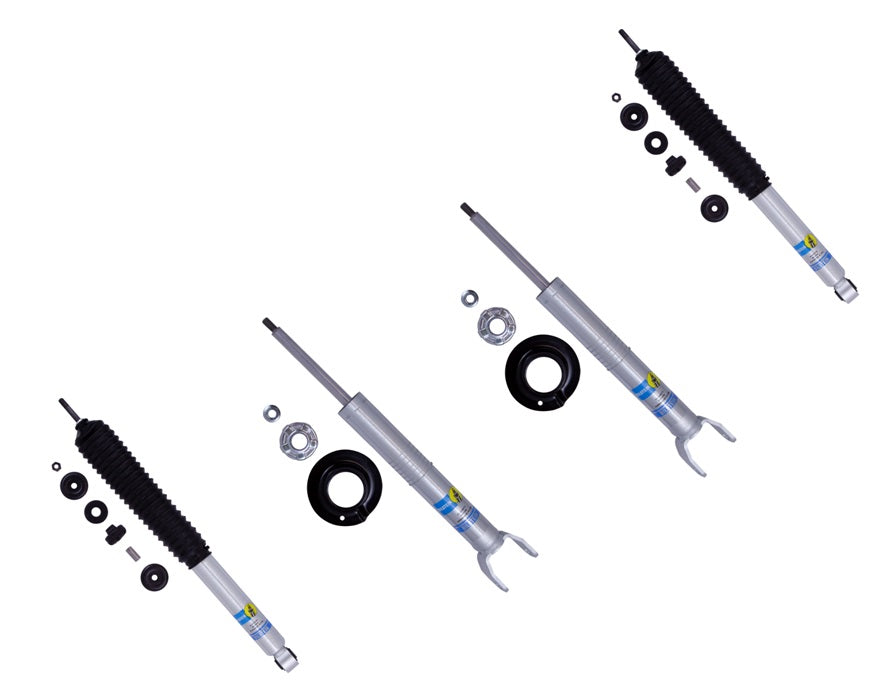

This package includes both front and rear shocks (rear are non-adjustable) for a complete set of 4. (2) Front 24-300872 Bilstein shocks / (2) Rear 24-233354 Bilstein shocks.
