• 2.5" Front / 1" Rear Leveling Lift System for 2007-2021 Toyota Tundra - EXCEL 516007B - Tundra Suspension Package
1 2

Excel Suspension

24-232173 Bilstein, 24-321150 Bilstein - 2.25" Front and 1" Rear Leveling Lift System for a 2007-2021 Toyota Tundra 2WD / 4WD

24-232173 Bilstein, 24-321150 Bilstein - 2.25" Front and 1" Rear Leveling Lift System for a 2007-2021 Toyota Tundra 2WD / 4WD

$999.00
$1,075.00 $999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

2.5" Front / 1" Rear Leveling Lift System for 2007-2021 Toyota Tundra - EXCEL 516007B - Tundra Suspension Package

EXCEL 516007B - 24-232173 Bilstein, 24-321150 Bilstein - 2.25" Front and 1" Rear Leveling Lift System for a 2007-2021 Toyota Tundra 2WD / 4WD

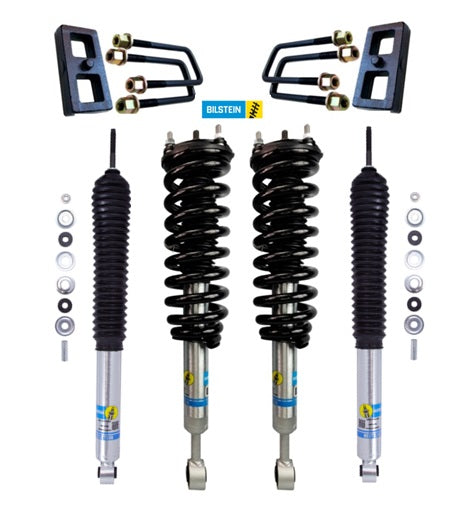

Kit Includes:

Quantity 2 - 1" Rear Blocks - Cast Iron

Quantity 4 - U-Bolts - 9/16"-18; 2.63" x 8.75," Zinc Plated Grade 8

Quantity 8 - High Nuts, 9/16" - 18 Fine Thread

Quantity 8 - Load Washer, 9/16" Grade 8

Quantity 2 - Bilstein Front 5100 Series Shock Absorbers 24-232173

Quantity 2 - Bilstein Rear 5100 Series Shock Absorbers 24-321150

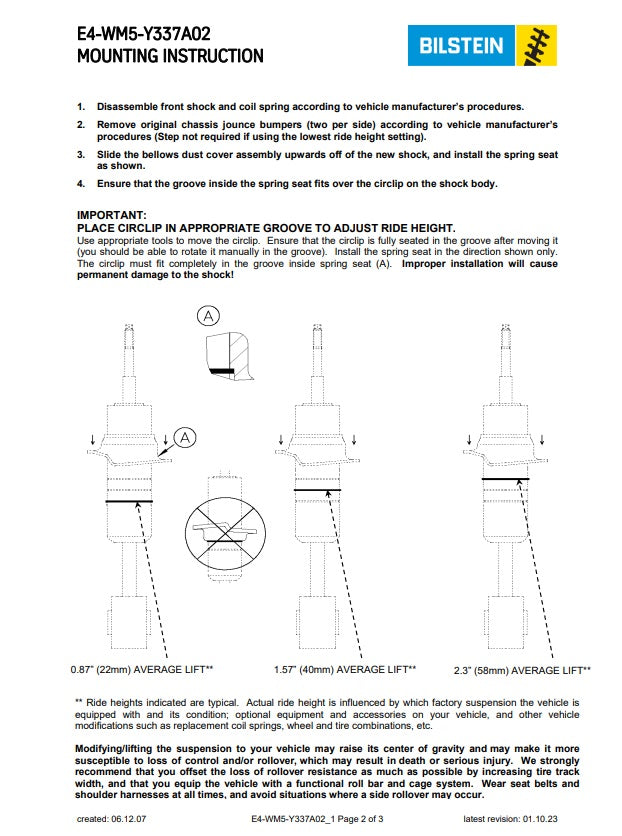

These Bilstein 24-232173 & 24-321150 B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Front 24-232173 Bilstein 5100 Series Shocks

  • Zinc Plated
  • Collapsed Length (IN) 17.77
  • Extended Length (IN) 24.21
  • Travel Length (IN) 6.44
  • Lower Mount: Eye 16.4mm
  • Upper Mount: Stem
  • Monotube
  • 651860730707



Rear 24-321150 Bilstein 5100 Series Shocks



  • Zinc Plated
  • Collapsed Length (IN) 15.33
  • Extended Length (IN) 24.80
  • Travel Length (IN) 9.47
  • Lower Mount: Eye 12.4mm
  • Upper Mount: Stem
  • Monotube
  • 651860877723
OME Springs:

OME 2612 - Stock Weight up to 150 lbs.  (If you need 2613 or 2614, please let us know via e-mail)
Linear Spring
Crafted from Micro-Alloyed Spring Steel
Old Man Emu Part Number 2612
Black Powder Coat Finish

KYB Top Mounts

1" Rear Block Kit - Part Breakdown:
1" Rear Cast Iron Blocks - (2)
U-Bolt E-Coated Kit - (4)
8 Nuts and Washers

FREE SHIPPING IN THE LOWER 48 UNITED STATES



Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with an OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Fitment:

2007-2021 Toyota Tundra
