2007-2021 Toyota Tundra Fully Assembled Bilstein 6112 Suspension Kit with Rear 5160’s Shock Absorbers, Rear Shackles, Differential Drop and Sway Bar Relocation Kit

2007-2021 Tundra Fully Assembled Bilstein 6112 Suspension Kit with Rear 5160’s Shock Absorbers, Rear Shackles, Differential Drop and Sway Bar Relocation Kit

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Fitment:

2007-2021 Toyota Tundra

Fitment Notes:

·       4x4 Models can be set at .75", 1.3", 1.9",  and 2.5"

·       4x2 Pre-Runner Models can be set at 1 .5”, 2.1”, 2.7” and 3.3”

·       Coil Compressor is NOT needed for this application.

·       Designed for 4WD and 2WD Applications

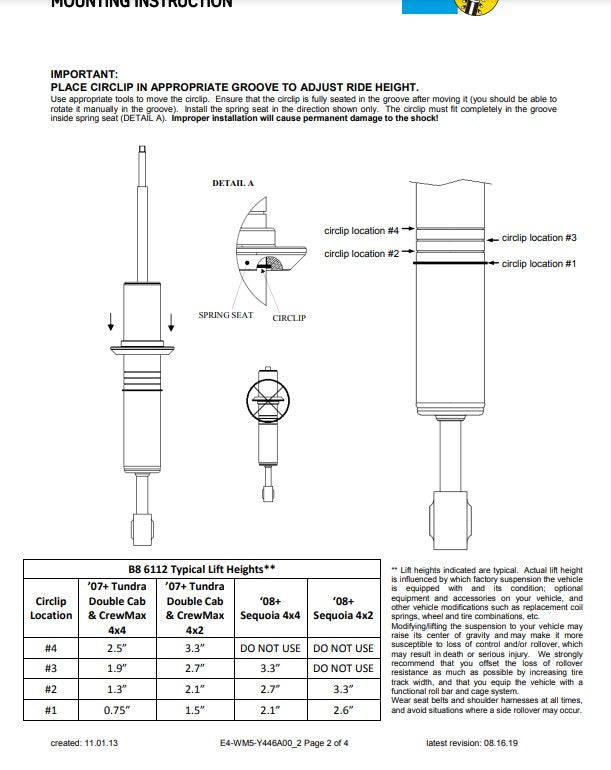

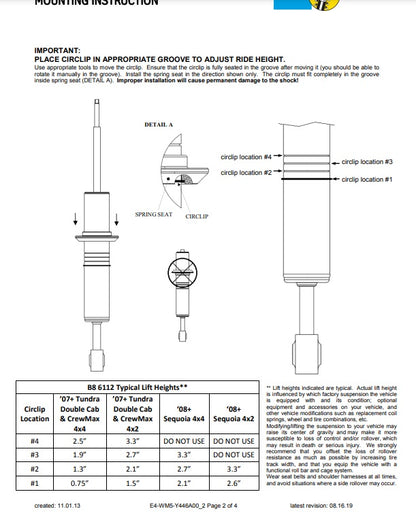

Circlip Location for Ride Height Selection:

Please see attached ride height chart for your vehicles exact desired ride height setting. As each Tundra model – 4WD – 2WD offers different cir-clip settings.

• Optimizes off-road and on-road capabilities
• 60mm digressive piston for increased damping control
• Adjustable in increments
• Direct Bolt on kit directly out of the box
• Limited Lifetime Warranty
• Free Shipping in the Lower 48 United States

Upgrade your Tundra with the Bilstein 6112 front coil-overs and 5160 rear shocks for a smoother ride. Perfect for both on-road and off-road adventures, experience immediate results with this fully assembled kit. Expertly designed for maximum performance and comfort.

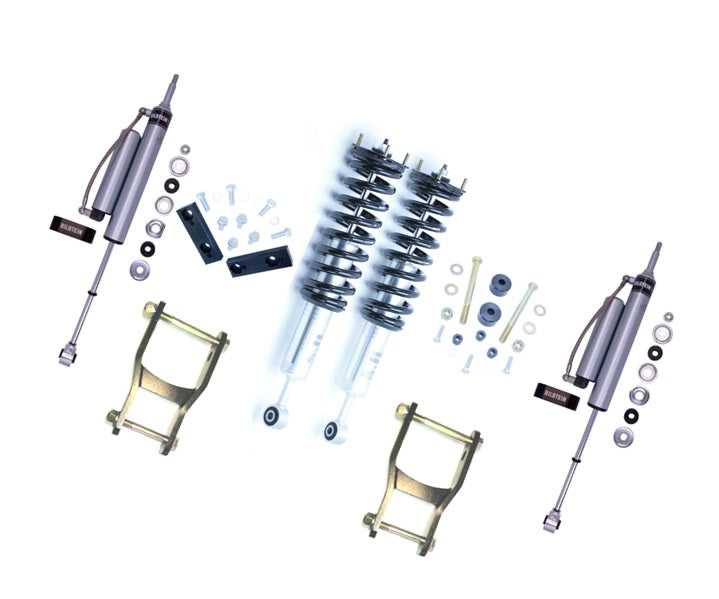

Kit Contents:

Quantity 1 - Bilstein Fully Assembled 6112 Kit with New Top Mounts

Quantity 2 - Bilstein 60mm Front Shock Absorbers

Quantity 2 - Bilstein Custom Matched Cold Wound Coil Spring

Quantity 2 - Billet Aluminum Spring SeatsQuantity 2 – New Top Mounts

Quantity 2 - Bilstein Rear 5160 Series Shock Absorbers (25-311365)

Quantity 1 – Front Sway Bar Relocation Kit with Hardware

Quantity 2 – Rear EXCEL Suspension Tundra Shackles

Quantity 1 – Differential Drop Kit

Specs:

47-310971 Bilstein 6112 Suspension Kit – Fully Assembled

Quantity 2 - Bilstein 60mm Front Shock Absorbers

Quantity 2 - Bilstein Custom Matched Cold Wound Coil Spring

Quantity 2 - Billet Aluminum Spring Seats

Quantity 2 – New Top Mounts

47-310971 Bilstein B8 6112 Suspension Kit for 2007-2021 Toyota Tundra

Kit Contents

Quantity 2 - Bilstein 60mm Front Shock Absorbers

Quantity 2 - Bilstein Custom Matched Cold Wound Coil Spring

Quantity 2 - Billet Aluminum Spring Seats

·       Front Zinc Plated 60mm Shock Absorbers

·       Black Coil Springs

·       Snap Ring Grooved Body Coilover

·       Mounting Kit: B4-KT1-Z362A00

·       Spring Seat: E4-FT2-Z043A01

·       Replacement Front Damper: 24-310987

·       UPC: 651860868875

·       Monotube Internal Design

·       Old Bilstein Part Number: 46-206084

·       B8 6112 Suspension Kit

·       Limited Lifetime Warranty

·       Free Shipping in the Lower 48 United States

·       Interchange: ICON Vehicle Dynamics 58650

25-311365 Bilstein B8 5160 Rear Remote Reservoir Shocks

Fitment:

2007-2021 Toyota Tundra 4WD / RWD

Fitment Notes:

For vehicles with 0-1.5" Rear lift

·       Collapsed Length: 15.22”

·       Extended Length: 25.72”

·       Travel:  10.50”

·       Lower Mount: Eye 12.4mm

·       Upper Mount: Stem

·       Zinc Plated, Monotube Design

·       46mm Body Diameter

·       Replacement Mounting Kit: B4-KT1-Z507A00

·       Replacement Mounting Kit 2: B4-KT1-Z019A00

·       Old Bilstein Part Number: 25-237429

·       2 Year Limited Warranty

·       UPC: 651860893105

·       Free Shipping in the Lower 48 United States

·       Interchange: Fox Shocks 985-24-115, ICON Vehicle Dynamics: 56506R

115007 EXCEL Suspension 2007-2021 Toyota Tundra Sway Bar Drop

SWAYBAR RELOCATION KIT Contents:

Quantity 2 – Drop Down Spacers

Quantity 4 – Grade 10.9 Mounting Bolts

Quantity 4 – Flat Washers

Front Sway Bar Drop Bracket for 2007-2021 Toyota Tundra

Product Applications:

 SWAYBAR RELOCATION KIT - 2WD / 4WD

• Constructed of solid 6061-T6 Aluminum Billet
• Precision CNC Machined on "ALL SIDES" to exact specifications.
• Features a MIL-Spec Black Hard Anodize Finish for added durability
• Sold in pairs with premium grade 10.9 metric hardware.
• Installation Instructions Included.
• Limited Lifetime Warranty.
• Proudly MADE IN THE USA
• Sway Bar Relocation Kit solves the issue of sway bar bind common on 2007-2022 Toyota Trucks. By dropping the sway bar, and locating it back into it's correct position, this kit puts full function and flexability back into the sway bar.

116000 - Excel Suspension Toyota Differential Drop Kit for Tundra

This diff drop kit is the highest quality on the market!

• Premium 6061-T6 Aluminum
• Precision CNC Machined Spacers
• MIL-SPEC Black Hard Anodized Finish
• Grade 8 & Metric 10.9 Premium Hardware

Diff Drop Kit Contents:

Quantity 2 – 6061 Aluminum Diff Drop Spacers

Quantity 3 – 6061 Aluminum Skid Plate Spacers

Quantity 2 – Grade 8 Mounting Bolts

Quantity 3 – 10.9 Skid Plate Mounting Bolts

Rear Shackle Kit

Adjustable 1" or 1.5" Heavy Duty Rear Shackle Kit for 2007-2021 Toyota Tundra

Part Number: 827007

Benefits and Features:

Provide 1" / 1.5" of Rear Lift (Adjustable with Multiple Settings)

Precision Heavy Duty 3/8" Laser Cut Steel Construction

CNC Bent and Formed

Heavy Duty Welded Cross Member Eliminates Sway

CNC Machined Pivot Spacers Provide Friction Free Suspension Cycling

Will Handle the Toughest Conditions, Provides Positive Suspension Action On-Road, Off-Road and Towing

Precision Grade 10.9 Metric Hardware

Exclusive "Triple EEE"(r) Black E-Coat Finish for lasting good looks and durability

Sold in Pairs (Qty. 2)

Made in the USA

Important Fitment Notes:

Some vehicles with the TRD and / or aftermarket exhaust systems, the exhaust system may need to be modified to work with the shackles.

Part #117007 Carrier Bearing Drop Kit is highly recommended

Longer than stock shock absorbers may be required for these shackles
